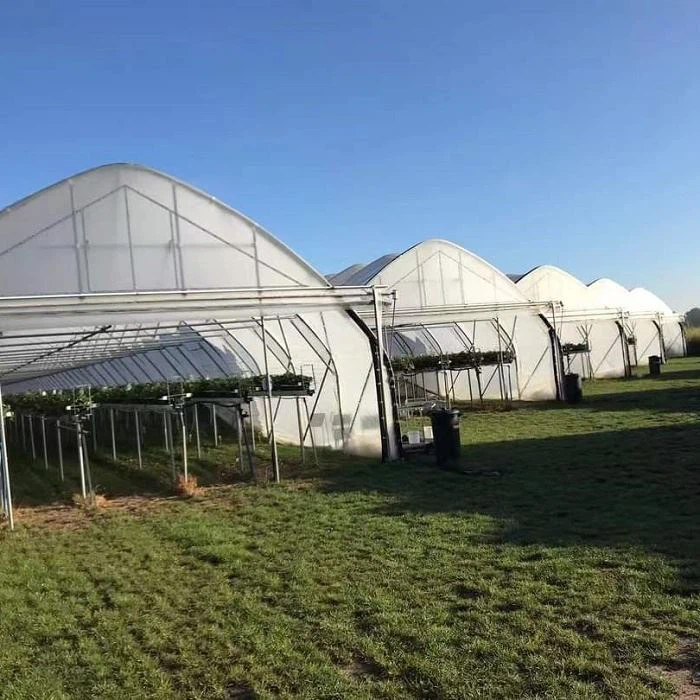

High Tunnel Greenhouse
High tunnel greenhouse provides a protected space for plant growth, with good stability, guaranteed quality, low cost, and can help promote socio-economic development and food self-sufficiency.
Description
We take great pride in providing our customers at Henan Yutuo Agricultural Science and Technology Co., LTD. with a diverse selection of cutting-edge agricultural products that promote crop growth and aid in the modernization of farming infrastructure on a global scale. Our High Tunnel Greenhouse, a budget-friendly and user-friendly structure, is frequently utilized to prolong growing periods and improve agricultural output.
Different from conventional greenhouses, High Tunnel Greenhouses are perfect for farmers who have limited land or prefer to have crops grown in a controlled environment with fewer pesticides and herbicides. While Low Tunnel Greenhouse provides less flexibility and space, High Tunnel Greenhouse boasts more spacious surroundings and is better suited for larger-scale, long-term crop growth, particularly taller crops. Overall, the use of High Tunnel Greenhouses presents a positive outlook for farmers seeking sustainable and efficient ways to grow crops.
Contact us today to learn more about our products and services and how we can help you achieve your agricultural goals!
Products Specification
|
High tunnel greenhouse |
||
|
Basic Parameters |
Wind Load |
0.4KN/m² |
|
Snow Load |
0.3KN/m² |
|
|
Maximum drainage capacity |
140mm/h |
|
|
Technical parameters |
Span Width |
6m, 7m, 8m or customized |
|
Column Spacing |
4.0m or customized |
|
|
Shoulder high |
3.0m - 6.0m or customized |
|
|
Steel Structure |
Hot dip galvanized steel tubes |
|
|
Covering Material |
Film |
|
|
Greenhouse Systems |
Top window system, fan system, wet curtain system, external shading system, internal shading system, internal thermal insulation system, seedbed system, light filling system, heating system, etc |
|
|
We will provide the design plan according to the customer's request. |
||
Products Images
What are the advantages of Yt's products?
Ideal for various crops
Polytunnel greenhouses can be used to grow a wide range of crops, from vegetables and flowers to herbs and even some types of fruit.
Better Heat Retention
Plastic can provide good insulation, especially when used in double or triple layers, helping to retain heat within the greenhouse.
Good Light Diffusion
Polyethylene distribute light more evenly across the greenhouse, reducing the risk of plants getting sunburned.
Versatility & Adaptability
Polytunnels are extremely adaptable and suitable for cultivating a variety of crops, making them an appealing choice for different agricultural purposes.
Long Service Life
Plastic is more impact-resistant than glass, reducing the risk of breakage from hail, strong winds, or accidental impacts.
High Quality With Competitive Price
At Yutuo, we ensures that you receive premium greenhouses crafted with precision and care, all while maintaining affordability.
greenhouse System Introduction
Main Frame Material
High quality hot-dip galvanized steel structure, Zinc-coating 275g/m2, service life over 20 years.
All steel materials are field-assembled, no secondary processing required.
The galvanized connectors and fasteners are not rusted for 20 years.
Covering Materials
High transmittance, good insulation, high aging resistance, heating block, strong insulation, and strong tension.
Compared to glass, it has low cost and a service life of 5-7 years.
Outside Shading System
The main function of the system is to cool and shade in the summer,
so that the sunlight diffuses into the greenhouse to ensure that the crop is protected from glare of the sun.
Greenhouse roof window system
Greenhouse roof window system is mainly used for natural ventilation of greenhouse,
the main role lies in the exchange of air inside the greenhouse and outside space, adjust indoor temperature,
humidity and arbon dioxide concentration and other environmental factors, promote the growth of crops.
Fan wet cooling system
Wet curtain fan system is an evaporative cooling and ventilation unit integrating cooling, ventilation, dustproof and odor removal.
It can reduce air temperature and ventilation through air circulation.
| Optional Intelligent Greenhouse System | ||
| 1 | Sun-shading net | Summer shade,block rain,moisture,cooling,winter spring heat preservation |
| 2 | Heating system | Thermal insulation series, air heater, boiler and pipe heating,Circulating fan |
| 3 | Water fertilizer integrated integrated irrigation system | Sprinkler irrigation series, drip irrigation series, intelligent mobile sprinkler irrigation |
| 4 | Fill in light system | Easy assemble auto light deprivation blackout greenhouse |
| 5 | Seedling bed | Movable seeding bed |
| 6 | Hydroponics system | It can be reused, no need to add nutrients, convenient and affordable |
| 7 | Exteral&internal shading system | The gear rack drives the shading system |
| 8 | Photovoltaic system | For solar power generation |
| 9 | Automatic Control system | Automatic control technology that can independently drive intelligent machines to achieve control objectives without human intervention |
What plants can you grow?
why choose us?
At Yutuo, we are dedicated to providing cutting-edge greenhouse solutions tailored to meet your unique needs. Here's why you should choose us: Innovative Designs, High-Quality Materials, Expertise and Experience, Exceptional Customer Support, Sustainability Focus.
Choose us for reliable, innovative, and sustainable greenhouse solutions that support your growth and success.
one-stop solution
professional team
13 Years Experience
Packing & shipping
FAQ
Q: Are you trading company or manufacturer?
Q: What is the purchasing process?
Q: How to confirm products quality?
Q: How to install and assemble the greenhouses?
Q: Can l get samples?
Q: Can l get drawing pictures according to my request?
