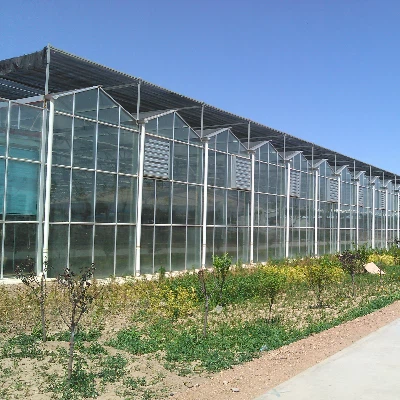

Strawberry Glass Greenhouse
Strawberry glass greenhouse refers to the process of moving strawberry production into a greenhouse, breaking the growth and dormancy patterns of strawberries, and further improving their quality, yield, and efficiency.
13 years of greenhouse manufacturing experience;
Turnkey one-stop solution;
IS0 9001 & CE certification;
Minimum order quantity: 500 square meters.
Description
Strawberry glass greenhouse is a greenhouse with glass as the main transparent covering material. It has the characteristics of high light transmittance, few steel structures, small roofs, multiple drainage ditches, and good drainage effect. It has a long service life and is suitable for various regions and climates. Different types of greenhouses are divided into different types based on planting different plants.
Products Specification
|
Strawberry Glass Greenhouse |
||
|
Basic Parameters |
Wind Load |
0.5KN/m² |
|
Snow Load |
0.35KN/m² |
|
|
Maximum drainage capacity |
140mm/h |
|
|
Technical parameters |
Span Width |
6.4m, 8m, 9.6m, 10.8m, 12.8m or customized |
|
Column Spacing |
4.0m, 8.0m or customized |
|
|
Shoulder high |
3.0m - 6.0m or customized |
|
|
Steel Structure |
Hot dip galvanized steel tubes |
|
|
Covering Material |
Hollow tempered glass or Single tempered glass | |
|
Greenhouse Systems |
Top window system, fan system, wet curtain system, external shading system, internal shading system, internal thermal insulation system, seedbed system, light filling system, heating system, etc |
|
|
We will provide the design plan according to the customer's request. |
||

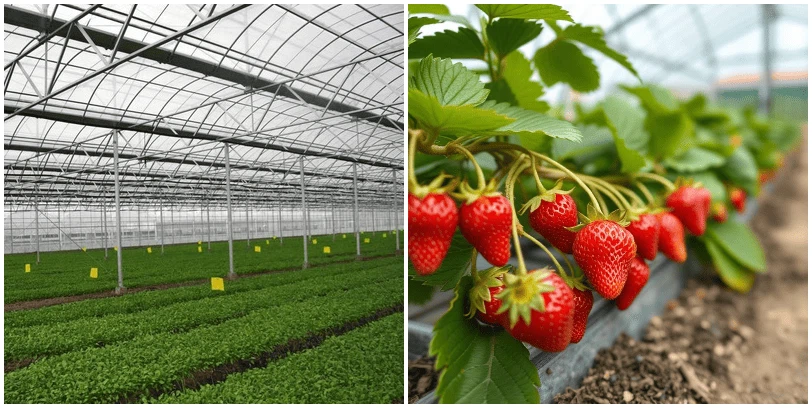

Products Images
What are the advantages of Yt's products?
Enhanced Strawberry yields
It is engineered to offer ideal lighting and temperature conditions for crops, which is essential for plant growth.
Year-round production
Venlo glass greenhouse enables farmers and horticulturists to grow crops year-round, irrespective of outside weather conditions.
Energy efficient
The insulated glass panels in the design help reduce heat loss, ensuring optimal temperature and humidity levels.
Structural Strength
These structures use robust materials, such as hot-dip galvanized steel frames, to improve wind resistance and structural stability.
Long Service Life
Venlo glass is a durable material that extends the greenhouse's lifespan, providing a long-term solution for farming needs.
High Quality With Competitive Price
At Yutuo, we ensures that you receive premium greenhouses crafted with precision and care, all while maintaining affordability.
greenhouse System Introduction
Main Frame Material
High quality hot-dip galvanized steel structure, Zinc-coating 275g/m2, service life over 20 years.
All steel materials are field-assembled, no secondary processing required.
The galvanized connectors and fasteners are not rusted for 20 years.
Covering Materials
Long service life, safety, light weight, Soft, transparent, insulated,
Greenhouse envelope material PC sunshine board is the best substitute for glass.
Outside Shading System
The main function of the system is to cool and shade in the summer,
so that the sunlight diffuses into the greenhouse to ensure that the crop is protected from glare of the sun.
Greenhouse roof window system
Greenhouse roof window system is mainly used for natural ventilation of greenhouse,
the main role lies in the exchange of air inside the greenhouse and outside space, adjust indoor temperature,
humidity and arbon dioxide concentration and other environmental factors, promote the growth of crops.
Fan wet cooling system
Wet curtain fan system is an evaporative cooling and ventilation unit integrating cooling, ventilation, dustproof and odor removal.
It can reduce air temperature and ventilation through air circulation.
| Optional Intelligent Greenhouse System | ||
| 1 | Sun-shading net | Summer shade,block rain,moisture,cooling,winter spring heat preservation |
| 2 | Heating system | Thermal insulation series, air heater, boiler and pipe heating,Circulating fan |
| 3 | Water fertilizer integrated integrated irrigation system | Sprinkler irrigation series, drip irrigation series, intelligent mobile sprinkler irrigation |
| 4 | Fill in light system | Easy assemble auto light deprivation blackout greenhouse |
| 5 | Seedling bed | Movable seeding bed |
| 6 | Hydroponics system | It can be reused, no need to add nutrients, convenient and affordable |
| 7 | Exteral&internal shading system | The gear rack drives the shading system |
| 8 | Photovoltaic system | For solar power generation |
| 9 | Automatic Control system | Automatic control technology that can independently drive intelligent machines to achieve control objectives without human intervention |
Why Choose Us?
At Yutuo, we are dedicated to providing cutting-edge greenhouse solutions tailored to meet your unique needs. Here's why you should choose us: Professional Design Team, High-Quality Materials, Modern Factory in China, Efficient Construction Team, Exceptional Customer Support.
Choose us for reliable, innovative, and sustainable greenhouse solutions that support your growth and success.
Modern Factory
years experience
Large Projects
engineers & researchers
Packing & shipping
FAQ
Q: Are you trading company or manufacturer?
Q: What is the purchasing process?
Q: How to confirm products quality?
Q: How to install and assemble the greenhouses?
Q: Can l get samples?
Q: Can l get drawing pictures according to my request?
